- Flat Springs with an improved lever ratio of the built-in switch ensure smooth snap action and long life expectancy.
- Protection cover protects the bulit in switch from dust and oil. Plunger incorporates a tough seal cap that lasts for a long time.
- One touch connector eliminates need for tedious wiring operations and reduces downtime for wiring and maintenance (models with standard, easy to use screw terminals are also available).
- Minute load model with gold cladding is optimal for electronic control.
- Molded terminal types as well as molded terminal types with operating indicator lamps are available for screw terminal systems.

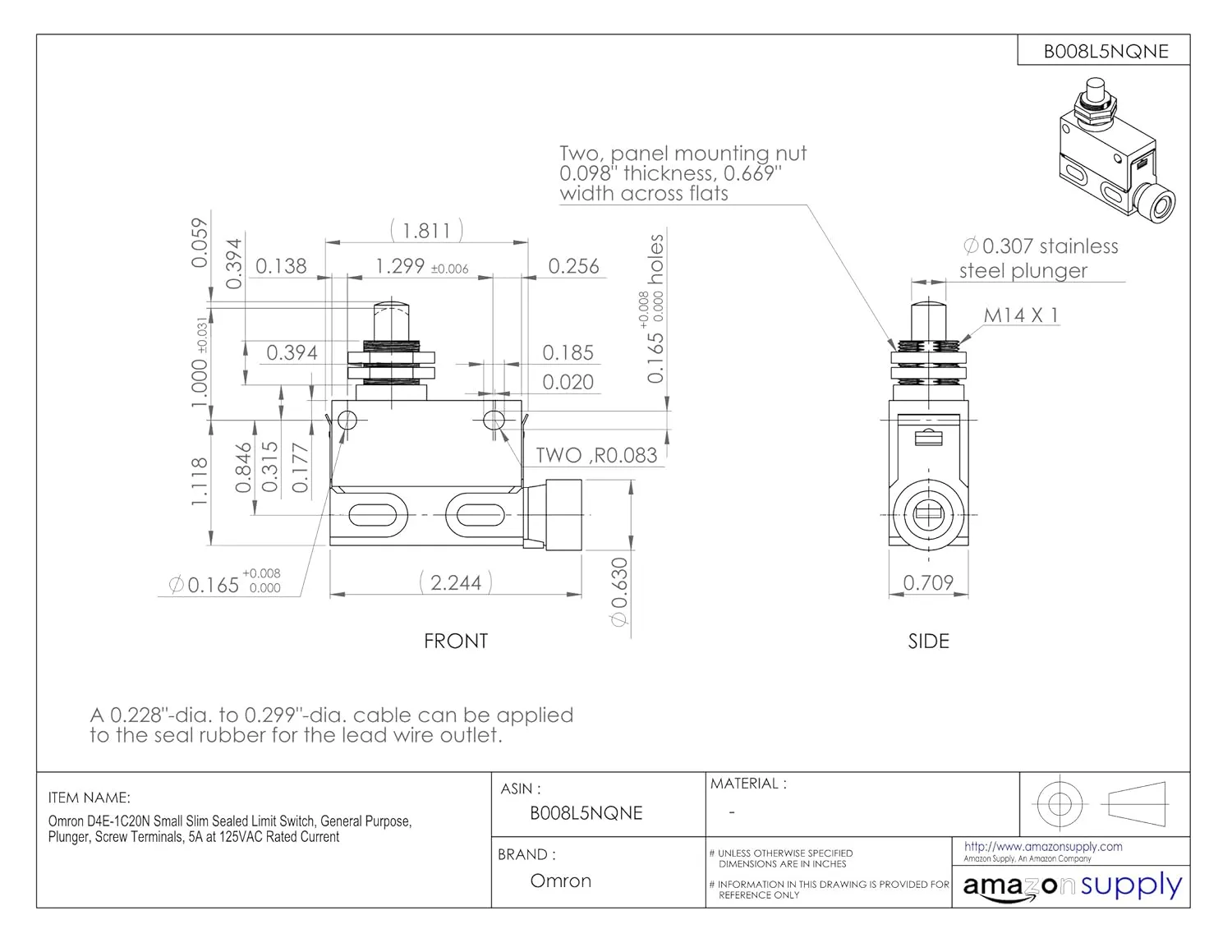

Slim and Compact Enclosed Limit Switch with a Long Life. Ideal for gang mounting. Rated IP67; NEMA 3, 4, and 13. Long service life (10,000,000 mechanical operations). Wide ragne of actuators: Plunger, roller plunger, cross roller plunger. Sealed plunger, roller plunger, cross roller plunger. Standard and one way action roller lever. Screw terminals, connector or pre wired with 1m cable models. Micro load types available.
- Product Dimensions : 17.72 x 13.78 x 7.87 inches; 0.8 ounces
- Date First Available : September 6, 2014
- Manufacturer : Omron
